User Manual for C1

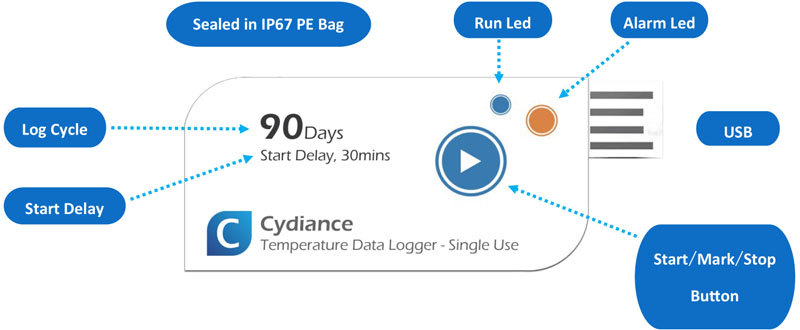

A quick guide for how to operate C1.

WARNING!

Do not remove the plastic bag unless you have finished the trip or seen the blue LED solid.

Press the button for 5 seconds till both LED light up, the LED will then flash every 3 seconds indicating the logger is working.

Press the button once, the RUN LED will light up for 1 second, indicating a MARK has been made successfully. Total 8 MARKs can be made.

Press the button for 5 seconds till both LED light up, the RUN LED will then light up all time indicating the logger is stopped and has been used.

Directly plug the USB into computer will stop the logger automatically too.

Plug USB into computer.

A, if the device has been stopped manually, a flash disk will pop up immediately with an encrypted PDF report;

B, if the device is stopped by USB, you might have to wait a while till the RUN LED become solid, and then a flash disk will pop up with an encrypted PDF report;
